Rally, rallycross, GT, or cup cars? Our RALLY button plate is a perfect choice for all of them!
THE RALLY DIY is one of our most beginner-friendly DIY project. You can buy all the custom parts from the webshop, simplifying the build further.
The DIY guide provided in the package explains every process step-by-step, from sourcing the components to the final assembly.
After purchase, all the files provided for this wheel will be sent to your email address.
Driving video: Rallycross testing video
Wheel features:

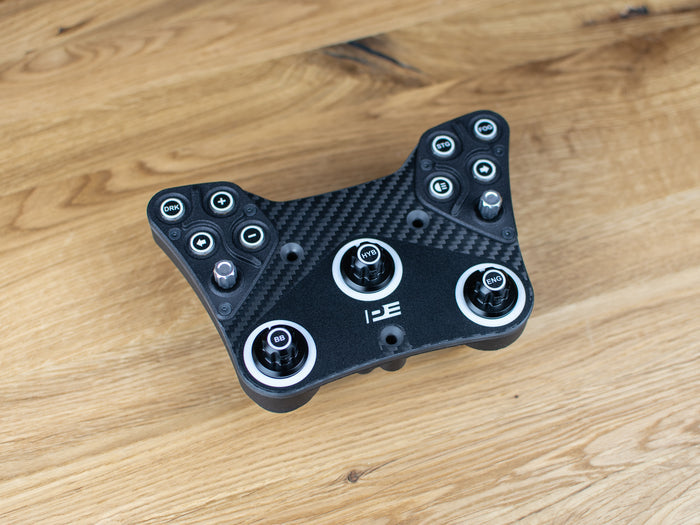

| • | 4mm carbon fiber frontplate |
| • | 178x114mm size |

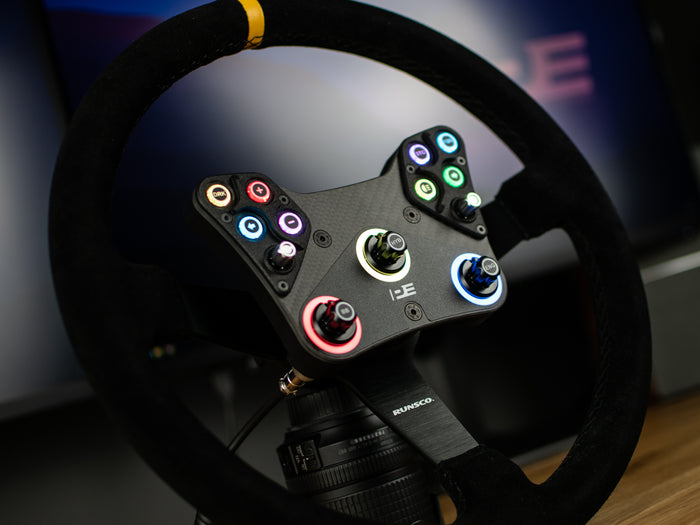

| • | RGB button and rotary backlight (SimHub control) |
| • | 2x Funky (7-way) switch |
| • | 3x Rotary encoders with push function |

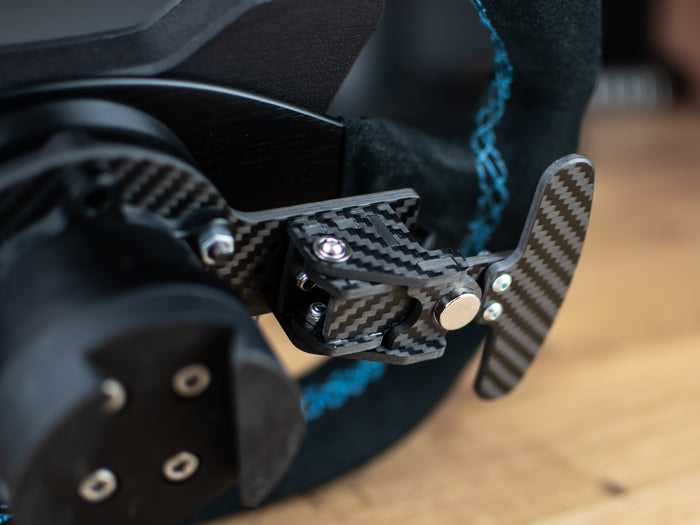

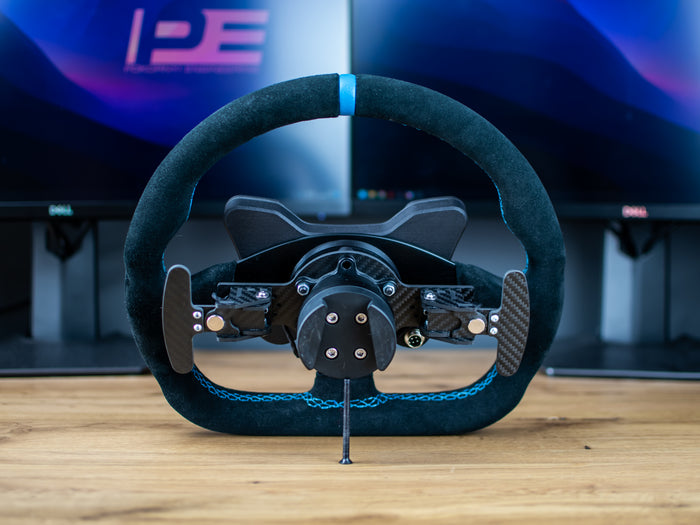

| • | Optional magnetic paddle shifter (design included) |
| • | Dual-clutch support (clutch design not included) |
| • | Compatible with 70mm PCD Quick-Releases |
Design content:
| • | Detailed step-by-step DIY guide (43 pages) |
| • | Full BOM (component list with links) |
| • | Files for 3D printing (.stl) |
| • | Files for carbon fiber parts manufacturing (.step) |
| • | Carbon shifter design with shifter plate |
| • | Ready to order fabrication files for custom PCB |
| • | Firmware for the PCB (binary only) |
| • | Sticker designs (printable .pdf and vector included) |
Compatible wheels:
| • | PE R330 (no spacer) |
| • | PE D330 (10mm spacer) |
| • | OMP 320S (10mm spacer) |
| • | OMP WRC (25mm spacer) |
| • | OMP 320S (10mm spacer) |
| • | OMP RS (25mm spacer) |
| • | Sparco R323 (10mm spacer) |
| • | Sparco R345 (25mm spacer) |
| • | Sparco R383 (10mm spacer) |
| • | Fanatec GT Rim (no sapcer) |
| • | Cube Controls GT Rim (no spacer) |
| • | Turn R305 (no spacer) |
| • | Turn R320 (10mm spacer) |
The list is not complete, most of the 70mm PCD wheels work with the right number of spacers.
Compatible bases:
| • | Fanatec (with Podium HUB or SRM emulator) |
| • | Simucube (with SQR) |
| • | Simagic (with Simagic QR) |
| • | MOZA (with Moza QR) |
| • | Asetek SimSports (with Asetek QR) |
| • | VRS DirectForce Pro |
| • | Thrustmaster (with 70mm adapter) |
| • | Any other bases with a 70mm PCD mounting system |
PERSONAL USE LICENSE ONLY
The files are for personal use only, non-commercial, not for resale!
You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints/makes of the model.
This is not a physical product. Digital downloads will be sent via email automatically after completing payment.
Photos are examples only of one build.
