Baader UFC T-2 (w) Camera-Adapter for ASI Cameras with T-2 (m) Thread (UFC-T2ASI)

Baader UFC T-2 (w) Camera-Adapter for ASI Cameras with T-2 (m) Thread (UFC-T2ASI)

$30.48 USD
$41.19 USD $30.48 USD
Sale Sold out
Shipping calculated at checkout.

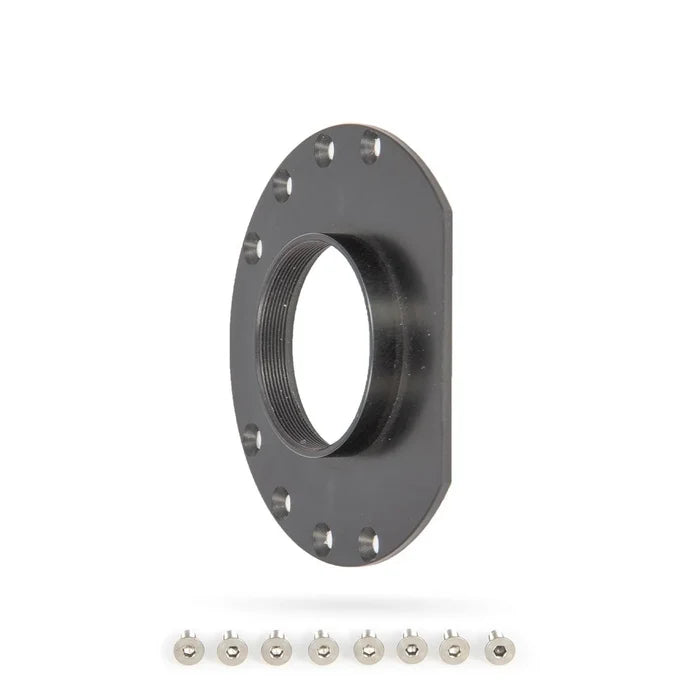

Baader UFC T-2 (w) Camera-Adapter for ASI Cameras with T-2 (m) Thread

  • Baader UFC Fitting / T-2 (f) Thread Adapter
  • telescope-side: mounting plate for UFC-Base
  • camera-side: with T-2 female thread, especially for ASI cameras with T-2 (m) thread and 6.5mm back focus (ASI T-2 inner thread ring removed)
  • can be adapted via the included screws and the mounting plate to the Baader UFC Base (Filter Chamber) telescope-sided S70 dovetail receptor (optical height: 13 mm) (#2459110)
  • Optical height: 8.5 mm

Technical Specifications

SKU (#) 2459170
EAN CODE 4047825048387
OPTICAL LENGTH (MM) 8,5
OUTER DIAMETER 89mm
INNER CONNECTION (LENS SIDED) Thread
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) T-2 (M42 x 0,75)
ADAPTABLE TO ASI Cameras with T-2(m) Thread and 6.5 mm Backfocus
TYPE OF ADAPTER Camera Adapter

In the Box

-Baader UFC T-2 (w) Camera-Adapter for ASI Cameras with T-2 (m) Thread

Warranty & Manual

Baader 2-year Warranty

UFC Technical Drawing
