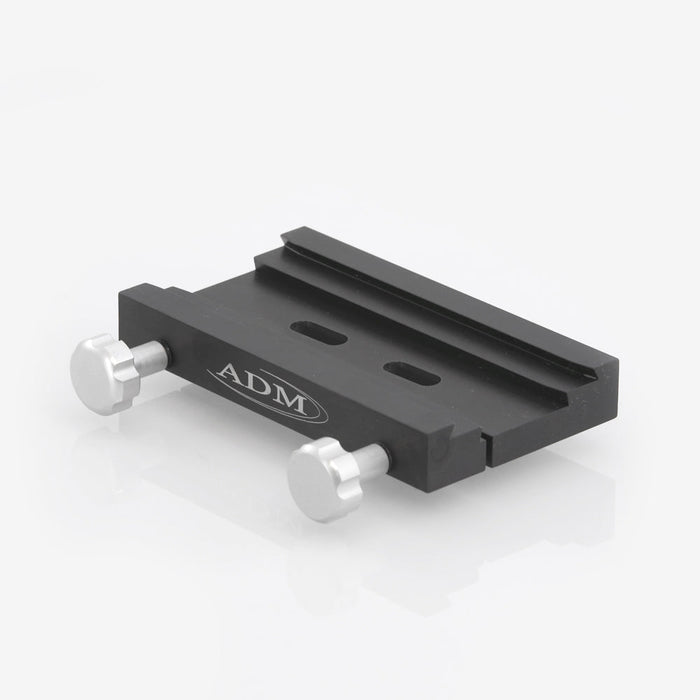

ADM DUAL Series Saddle. Slotted Hole Version for 6mm

Fits many ADM Accessories mount adapters but was designed specifically to fit Stellarvue ALT/AZ mounts with 1.5″ hole spacing for a 1/4×20 bolt. Accepts both D Series and V Series dovetail bars. The slotted holes will accommodate hole spacing from 1.5” to 3” center to center for a 1/4” socket head cap screw or a 6mm socket head cap screw.  Designed to fit the Stellarvue ALT/AZ mounts with 1.5″ hole spacing for a 1/4×20 bolt.  Split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick, Wt. 26 oz.

Technical Specifications

In the Box

-1x DUAL Series Saddle
-2x 1/4×20 SHCS

Warranty & Manual

ADM Lifetime Warranty
